Year: 2014 - 2016
Conceptual Design / Surveying

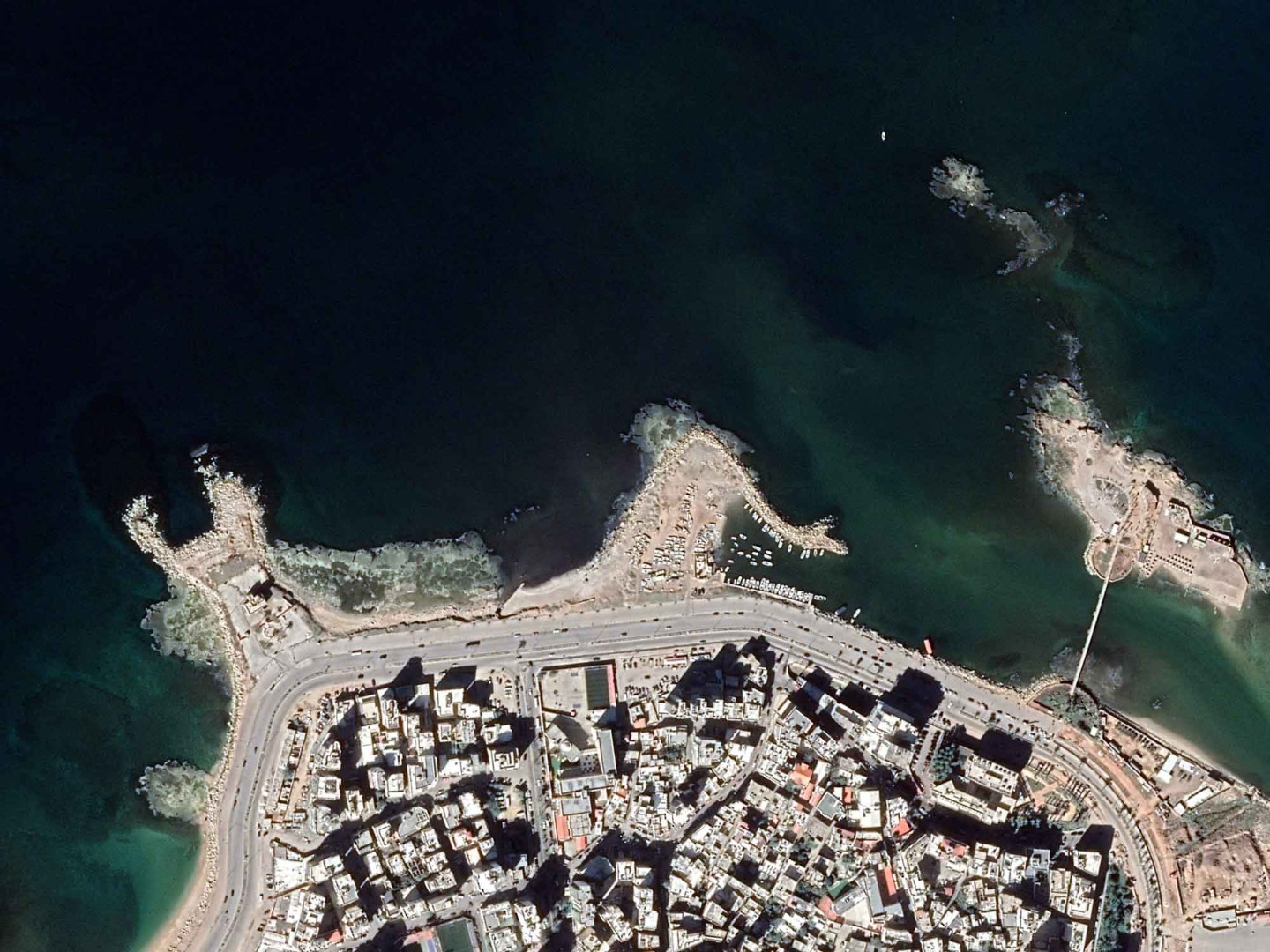

Tripoli Marina
- Marina Master Plan
- Berthing capacity (975 yachts)
- Main Breakwater (Rubble mound type, L=880m @max -8.00m, core material, rocky filter and concrete Accropodes blocks Type I)
- Detached vertical breakwater (Underwater concrete, L=197m @max -3.00m)
- RC Crown walls
- Quaywalls (L=3,315m @-3.00m MSL) / Precast concrete blocks (Gravity QW)
- Finger Piers (L=950m @-3.00m MSL, Nbr 14) / Precast concrete elements
- Slipway (Boat ramp)
- Marine accessories (Mooring bollards, fenders)
- Land reclamation and bituminous / RC Platforms
- Green spaces
- Access bridges
- Marina master headquarter, restaurants, offices, shops (11,700m2)
- Parkings (25,200m2)
- Fueling station
- Sandy beach nourishment and stabilization (L=330m)
- Reclaimed area (176,500m2)
- Water body (197,500m2)
- Topographic survey (20,000m2)
- Bathymetric survey (377,400m2)
- Drawings / BoQ
