Year: 2005
Conceptual Design / Bidding Assistance

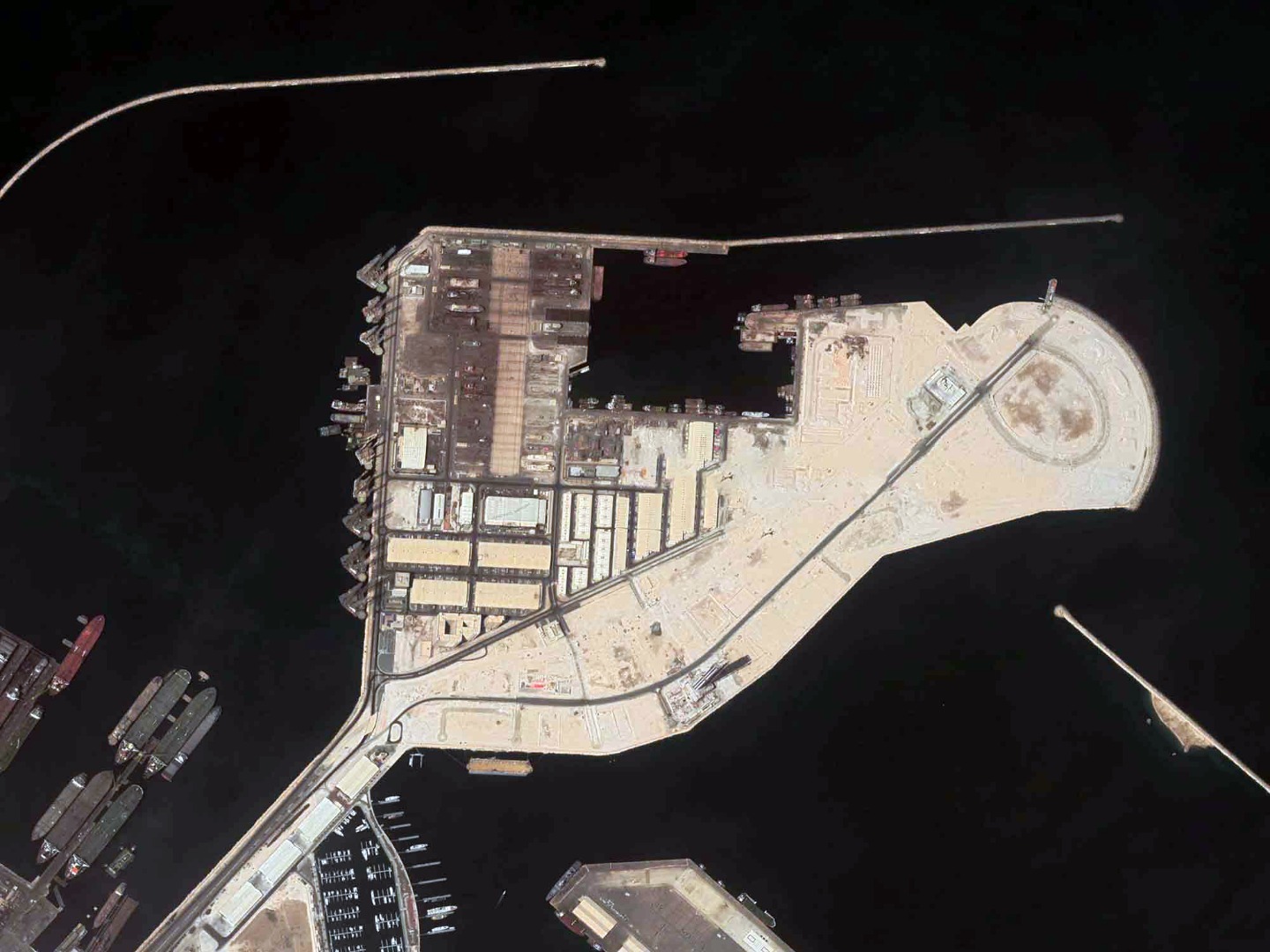

Dubai Maritime City
- Stability calculation for various types of quaywalls, shiplift structures (Mobile Hoist), slipway and finger pier

- Shipyard Quay Walls Design
  Depth @-7.00m DMD
  Vehicle loading: Mobile Cranes

- Shiplift Quay Walls Design
  Depth @-7.00m DMD
  Vehicle loading: Mobile Cranes
  Vessel type: 6000T Max displacement

- Fitting Out Quay Walls
Depth @-5.00m DMD
Vehicle loading: Mobile Cranes
300T Mobile Boat Hoist / Travel lift
Vessel type : 50m yachts

- Access Channel Quay Walls Design
  Depth @-7.00m DMD
  Vehicle loading: Mobile Cranes
  300T Mobile Boat Hoist / Travel lift
  Vessel type : 110m yachts

- Marina Quay Walls
  Depth @-3.00m / -7.00m DMD
  Vehicle loading: Light vehicle
  Vessel type = Water Taxi vessels only

- Slipway
  Vertical walls on the outward faces and ramp

- Finger Pier
  Travel lift operations

- Drawings / BoQ
